Loading Port: XINGANG PORT, CHINA
Min.order quantity: 1000M2
Supply Capability: 10000M2/D
Payment Terms: TT/ LC
Trade Terms: FOB,CIF,CNF,EXW
View: 2721
COMPOSITE
DIMPLE GEOMEMBRANE

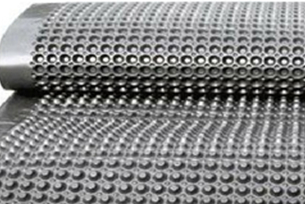

It is produced by extruding plastic sheet into dimple shape, which is in spatial structure with certain height , can resist long term high pressure without deformation. On the top of the dimples there is filtration geotextile to make sure the drainage channel running well without any block for any articles ,filling particles or concrete.
Specification
of Composite dimple geomembrane :
|
NO |
ITEM |
H10-1.0 |
H20-1.0 |
H10-1.5 |
H20-1.5 |
H10-2.0 |
H20-2.0 |
||
|
1 |
Tensile strength KN/M |
400 |
400 |
500 |
500 |
700 |
700 |
||
|
2 |
Breaking enlongation % |
200 |
200 |
300 |
300 |
400 |
400 |
||
|
3 |
Stereoscopic tensile strength |
400 |
320 |
450 |
370 |
500 |
420 |
||
|
4 |
Size stability % |
+_2 |
|||||||
|
5 |
Bucking in Low temperature |
-35°C without bucking |
|||||||
|
6 |
Longitudinal flow capacity CM3/S 5KPa |
5.6 |
8.6 |
5.6 |
8.6 |
5.6 |
8.6 |
||
|
7 |
Longitudinal flow capacity CM3/S 350KPa |
15.2 |
18.2 |
15.2 |
18.2 |
15.2 |
18.2 |
||
Application
of Composite dimple geomembrane:
It is used in landscape engineering :garage top greening , roof garden, football field, golf course ,beach project;Municipal engineering : road base, subway , tunnel, landfill,
Construction engineering : upper or bottom layer of building foundation, basement wall, bedding filtration and heat insulation;Taffic engineering : highway, railway, basement, dam,slope.

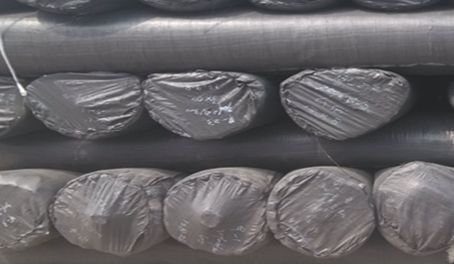

Packing of Composite dimple geomemembrane : it is wrapped in plastic bag with paper tube in side , then into container .
